Fighter 1215 8,5kw Cu 089683

Here you'll find our primary range for Nibe Fighter 1215 8,5kW Cu with spare part number 089683. If you can't find the spare part you're looking for, please contact us by phone, chat or email and we'll help you find the right spare part and see if it's available.

All our spare parts for Nibe Fighter 1215 are original from Nibe and have 12 month warranty.

By using Nibe's original spare parts you ensure the operation of the heat pump, the durability and the efficiency.

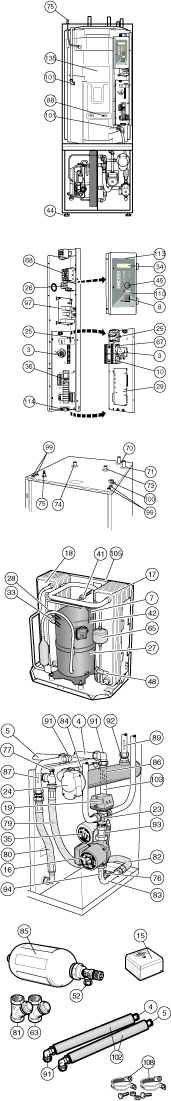

Sprängskisser

Klicka för att förstora

Fighter 1215 8,5kw Cu 089683

Products

  1. 003. Thermostat

    Thermostat
    44.24£ incl. VAT 35.39£ excl. VAT Add to Cart
  2. 004. Cu pipe

    Cu-pipe
    38.58£ incl. VAT 30.87£ excl. VAT Add to Cart
  3. 005. Cu pipe

    Cu-pipe
    38.58£ incl. VAT 30.87£ excl. VAT Add to Cart
  4. 008. Switch, position 1 - 0

    Switch, position 1 - 0
    17.07£ incl. VAT 13.66£ excl. VAT Add to Cart
  5. 010. Contactor

    Contactor
    52.52£ incl. VAT 42.02£ excl. VAT Add to Cart
  6. 015. Outside sensor Fighter

    Outdoor sensor for Nibe Fighter heat pumps
    49.19£ incl. VAT 39.35£ excl. VAT Add to Cart
  7. 016. Circulation pump Grundfos UPM3 Flex AS 15-70 130 mm (replaces UPS 15-60)

    Circulation pump Grundfos UPM3 Flex AS 15-70 130 mm
    195.84£ incl. VAT 156.67£ excl. VAT Add to Cart
  8. 017. Evaporator Without Manifold 50 Pl

    Evaporator without manifold
    911.02£ incl. VAT 728.82£ excl. VAT Add to Cart
  9. 018. Condenser

    Condenser
    808.71£ incl. VAT 646.97£ excl. VAT Add to Cart
  10. 023. Exchange valve Honeywell

    Exchange valve Honeywell

    28 mm connection
    169.78£ incl. VAT 135.82£ excl. VAT Add to Cart
  11. 024. Immersion heater 9kW

    Immersion heater, 9kW with G2 classification
    280.38£ incl. VAT 224.30£ excl. VAT Add to Cart
  12. 025. Temperature Limiter

    Temperature limiter.
    89.89£ incl. VAT 71.91£ excl. VAT Add to Cart
  13. 026. Motor protection Moeller

    Motor protection, Moeller
    62.82£ incl. VAT 50.26£ excl. VAT Add to Cart
  14. 027. Compressor 10kW Benchmark

    Compressor 10kW, Benchmark
    1,296.74£ incl. VAT 1,037.39£ excl. VAT Add to Cart
  15. 028. Operating pressure pressostat, 24 bar

    Operating pressure pressostat, 24 bar
    38.58£ incl. VAT 30.87£ excl. VAT Add to Cart
  16. 029. Relay card F1215

    Relay card F1215
    210.89£ incl. VAT 168.71£ excl. VAT Add to Cart
  17. 033. High pressure pressostat, 27 bar

    High pressure pressostat, 27 bar
    38.58£ incl. VAT 30.87£ excl. VAT Add to Cart
  18. 034. Central Unit F-11/12

    Central unit
    262.20£ incl. VAT 209.76£ excl. VAT Add to Cart
  19. 036. Fine wire fuse, 5a Ceramics 5 * 20

    Fine wire fuse, 5a Ceramics 5 * 20
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  20. 041. Low pressure pressostat, 1.5 Bar

    Low pressure pressostat, 1.5 Bar
    38.58£ incl. VAT 30.87£ excl. VAT Add to Cart
  21. 042. Service connection, high pressure

    Service connection, high pressure
    20.60£ incl. VAT 16.48£ excl. VAT Add to Cart
  22. 044. Foot With M12

    Foot With M12
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  23. 045. Knob, offset heating curve

    Knob, offset heating curve
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  24. 048. Expansion valve, Flica R407C

    Expansion valve, Flica R407C
    173.92£ incl. VAT 139.14£ excl. VAT Add to Cart
  25. 052. Safety valve 3,0bar

    Safety valve 3,0bar
    51.41£ incl. VAT 41.13£ excl. VAT Add to Cart
  26. 061. Actuator valve honeywell

    Actuator valve honeywell
    126.35£ incl. VAT 101.08£ excl. VAT Add to Cart
  27. 063. Particle filter R25

    Particle filter R25
    39.29£ incl. VAT 31.43£ excl. VAT Add to Cart
  28. 065. Drying filter, Benchmark

    Drying filter, Benchmark
    51.61£ incl. VAT 41.29£ excl. VAT Add to Cart
  29. 067. Contactor Spring terminals

    Contactor
    52.52£ incl. VAT 42.02£ excl. VAT Add to Cart
  30. 068. Contactor, Moeller Dilm 9-10

    Contactor, Moeller Dilm 9-10
    44.84£ incl. VAT 35.88£ excl. VAT Add to Cart
  31. 075. Air nipple

    Air nipple
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  32. 076. Drain valve, heating system

    Drain valve, heating system
    17.88£ incl. VAT 14.30£ excl. VAT Add to Cart
  33. 077. Venting screw, supply air battery

    Venting screw, supply air battery
    15.96£ incl. VAT 12.77£ excl. VAT Add to Cart
  34. 079. Flexible hose

    Flexible hose
    64.74£ incl. VAT 51.79£ excl. VAT Add to Cart
  35. 080. Flexible hose

    Flexible hose
    46.76£ incl. VAT 37.41£ excl. VAT Add to Cart
  36. 081. Filter ball R20

    Filter ball R20
    24.85£ incl. VAT 19.88£ excl. VAT Add to Cart
  37. 082. Flexible Hose

    Flexible hose
    30.00£ incl. VAT 24.00£ excl. VAT Add to Cart
  38. 083. Spare part for draining

    Spare part for draining
    30.40£ incl. VAT 24.32£ excl. VAT Add to Cart
  39. 084. Flexible hose

    Flexible hose
    39.29£ incl. VAT 31.43£ excl. VAT Add to Cart
  40. 085. Vessel, complete

    Vessel, complete
    98.27£ incl. VAT 78.62£ excl. VAT Add to Cart
  41. 086. Temperature sensor (518722)

    Temperature sensor
    19.70£ incl. VAT 15.76£ excl. VAT Add to Cart
  42. 087. Temperature sensor (518722)

    Temperature sensor
    19.70£ incl. VAT 15.76£ excl. VAT Add to Cart
  43. 088. Temperature sensor (518722)

    Temperature sensor
    19.70£ incl. VAT 15.76£ excl. VAT Add to Cart
  44. 089. Temperature sensor (518722)

    Temperature sensor
    19.70£ incl. VAT 15.76£ excl. VAT Add to Cart
  45. 091. Coupling 28x28, angle 90º

    Coupling 28x28, angle 90º
    38.58£ incl. VAT 30.87£ excl. VAT Add to Cart
  46. 092. Straight Coupling

    Straight coupling
    17.07£ incl. VAT 13.66£ excl. VAT Add to Cart
  47. 094. Hot water sensor Nibe

    Temperature sensor
    19.70£ incl. VAT 15.76£ excl. VAT Add to Cart
  48. 097. Soft-start relay, 3x400V

    Soft-start relay, 3x400V
    247.55£ incl. VAT 198.04£ excl. VAT Add to Cart
  49. 099. Cable gland, sensor

    Cable gland, sensor
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  50. 100. Rubber grommet

    Rubber grommet
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  51. 101. Docking, outgoing Ø22

    Docking, outgoing
    19.49£ incl. VAT 15.59£ excl. VAT Add to Cart
  52. 102. Insulation pipe, Ø28

    Insulation pipe, Ø28
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  53. 105. Refrigerator compartment 8,5kW xx10 F / 15

    Refrigerator compartment 8,5kW
    3,416.12£ incl. VAT 2,732.90£ excl. VAT Add to Cart
  54. 108. Rubber Clamp

    Rubber clamp
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  55. 110. Panel Sign F-1115/1215

    Panel sign F-1115/1215
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  56. 113. Ribbon cable

    Ribbon cable
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  57. 120. Front upper F-1210/15/20

    Front upper F-1210/15/20
    100.19£ incl. VAT 80.15£ excl. VAT Add to Cart
  58. 121. Front lower

    Front, lower
    102.11£ incl. VAT 81.69£ excl. VAT Add to Cart
  59. 126. Top panel F-1210/15/20

    Top panel F-1210/15/20
    64.74£ incl. VAT 51.79£ excl. VAT Add to Cart
  60. 127. Back plate, upper F-1210/15/20

    Back plate, upper F-1210/15/20
    66.46£ incl. VAT 53.17£ excl. VAT Add to Cart
  61. 130. Plastic cover, front

    Plastic cover, front
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
  62. 131. Snap lock, 1.5mm. 8 pcs/package

    Snap lock, 1.5mm. 8 pcs/package
    15.05£ incl. VAT 12.04£ excl. VAT Add to Cart
