Fighter 1215 4kw Cu 089680

Here you'll find our primary range for Nibe Fighter 1215 4kW Cu with spare part number 089680. If you can't find the spare part you're looking for, please contact us by phone, chat or email and we'll help you find the right spare part and see if it's available.

All our spare parts for Nibe Fighter 1215 are original from Nibe and have 12 month warranty.

By using Nibe's original spare parts you ensure the operation of the heat pump, the durability and the efficiency.

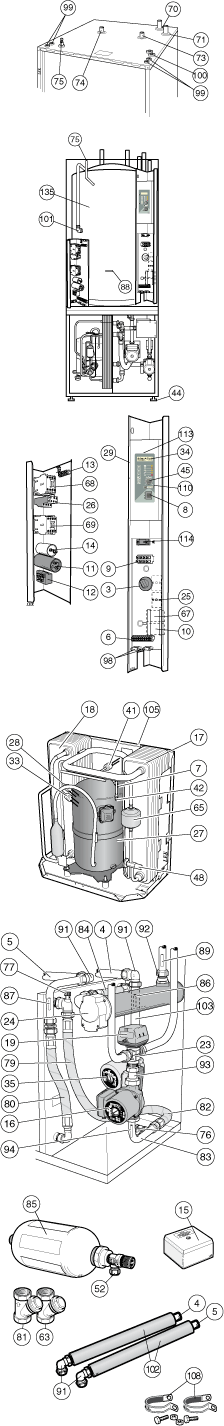

Exploded view

Click to enlarge

Fighter 1215 4kw Cu 089680

Products

  1. 003. Thermostat

    Thermostat
    56.81£ incl. VAT 45.45£ excl. VAT Add to Cart
  2. 004. Cu pipe

    Cu-pipe
    49.50£ incl. VAT 39.60£ excl. VAT Add to Cart
  3. 005. Cu pipe

    Cu-pipe
    49.50£ incl. VAT 39.60£ excl. VAT Add to Cart
  4. 006. Terminal block, internal

    Terminal block, internal
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  5. 008. Switch, 3-position

    Switch, 3-position
    21.95£ incl. VAT 17.56£ excl. VAT Add to Cart
  6. 009. Terminal block, incoming supply

    Terminal block, incoming supply
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  7. 010. Contactor DILEM-10

    Contactor, DILEM-10
    55.58£ incl. VAT 44.46£ excl. VAT Add to Cart
  8. 011. Starting capacitor

    Starting capacitor
    108.87£ incl. VAT 87.10£ excl. VAT Add to Cart
  9. 012. Start relay

    Start relay
    104.50£ incl. VAT 83.60£ excl. VAT Add to Cart
  10. 013. Terminal block, circulation pump, common alarm

    Terminal block, circulation pump, common alarm
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  11. 014. Operating capacitor 35μf

    Operating capacitor 35μf
    75.62£ incl. VAT 60.50£ excl. VAT Add to Cart
  12. 015. Outside sensor Fighter

    Outdoor sensor for Nibe Fighter heat pumps
    63.08£ incl. VAT 50.46£ excl. VAT Add to Cart
  13. 016. Circulation pump Grundfos UPM3 Flex AS 15-70 130 mm (replaces UPS 15-60)

    Circulation pump Grundfos UPM3 Flex AS 15-70 130 mm
    425.60£ incl. VAT 340.48£ excl. VAT Add to Cart
  14. 017. Evaporator Without Manifold 26 Pl

    Evaporator Without Manifold 26 Pl
    676.50£ incl. VAT 541.20£ excl. VAT Add to Cart
  15. 018. Condenser Loval 24 Plates

    Condenser Loval 24 Plates
    689.51£ incl. VAT 551.61£ excl. VAT Add to Cart
  16. 023. Exchange valve Honeywell

    Exchange valve Honeywell

    28 mm connection
    217.84£ incl. VAT 174.27£ excl. VAT Add to Cart
  17. 024. Immersion heater 9kW

    Immersion heater, 9kW with G2 classification
    360.05£ incl. VAT 288.04£ excl. VAT Add to Cart
  18. 025. Temperature Limiter

    Temperature limiter.
    129.58£ incl. VAT 103.66£ excl. VAT Add to Cart
  19. 026. Motor protection, including reset

    Motor protection, including reset
    163.02£ incl. VAT 130.42£ excl. VAT Add to Cart
  20. 027. Compressor 5kW 1x230V

    Compressor 5kW 1x230V
    1,305.68£ incl. VAT 1,044.54£ excl. VAT Add to Cart
  21. 028. Operating pressure pressostat, 24 Bar

    Operating pressure pressostat, 24 bar
    49.50£ incl. VAT 39.60£ excl. VAT Add to Cart
  22. 029. Relay card with power supply unit

    Relay card with power supply unit
    252.51£ incl. VAT 202.01£ excl. VAT Add to Cart
  23. 033. High pressure pressostat, 29 bar

    High pressure pressostat, 29 bar
    37.43£ incl. VAT 29.94£ excl. VAT Add to Cart
  24. 034. Central Unit F-11/12

    Central unit
    373.73£ incl. VAT 298.98£ excl. VAT Add to Cart
  25. 041. Low pressure pressostat, 1.5 Bar

    Low pressure pressostat, 1.5 Bar
    49.50£ incl. VAT 39.60£ excl. VAT Add to Cart
  26. 042. Service connection, high pressure

    Service connection, high pressure
    26.41£ incl. VAT 21.13£ excl. VAT Add to Cart
  27. 044. Foot With M12

    Foot With M12
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  28. 045. Knob, offset heating curve

    Knob, offset heating curve
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  29. 048. Expansion valve, Flica R407c

    Expansion valve, Flica R407c
    217.36£ incl. VAT 173.89£ excl. VAT Add to Cart
  30. 052. Safety valve 3,0bar

    Safety valve 3,0bar
    65.93£ incl. VAT 52.74£ excl. VAT Add to Cart
  31. 061. Actuator valve honeywell

    Actuator valve honeywell
    162.36£ incl. VAT 129.88£ excl. VAT Add to Cart
  32. 063. Particle filter R25

    Particle filter R25
    50.45£ incl. VAT 40.36£ excl. VAT Add to Cart
  33. 065. Drying filter, Benchmark

    Drying filter, Benchmark
    66.41£ incl. VAT 53.12£ excl. VAT Add to Cart
  34. 067. Contactor DILEM-10

    Contactor, DILEM-10
    55.58£ incl. VAT 44.46£ excl. VAT Add to Cart
  35. 068. Contactor 9a

    Contactor
    85.31£ incl. VAT 68.25£ excl. VAT Add to Cart
  36. 069. Contactor 9a

    Contactor
    85.31£ incl. VAT 68.25£ excl. VAT Add to Cart
  37. 075. Air nipple

    Air nipple
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  38. 076. Drain valve, heating system

    Drain valve, heating system
    40.09£ incl. VAT 32.07£ excl. VAT Add to Cart
  39. 077. Venting screw, supply air battery

    Venting screw, supply air battery
    20.43£ incl. VAT 16.34£ excl. VAT Add to Cart
  40. 079. Flexible hose

    Flexible hose
    83.13£ incl. VAT 66.50£ excl. VAT Add to Cart
  41. 080. Flexible hose

    Flexible hose
    59.85£ incl. VAT 47.88£ excl. VAT Add to Cart
  42. 081. Filter ball R20

    Filter ball R20
    32.02£ incl. VAT 25.61£ excl. VAT Add to Cart
  43. 082. Flexible Hose

    Flexible hose
    38.67£ incl. VAT 30.93£ excl. VAT Add to Cart
  44. 083. Spare part for draining

    Spare part for draining
    39.05£ incl. VAT 31.24£ excl. VAT Add to Cart
  45. 084. Flexible Hose

    Flexible hose
    50.45£ incl. VAT 40.36£ excl. VAT Add to Cart
  46. 085. Vessel, complete

    Vessel, complete
    126.16£ incl. VAT 100.93£ excl. VAT Add to Cart
  47. 086. Temperature sensor for Nibe Heat Pump

    Temperature sensor
    25.27£ incl. VAT 20.22£ excl. VAT Add to Cart
  48. 087. Temperature sensor for Nibe Heat Pump

    Temperature sensor
    25.27£ incl. VAT 20.22£ excl. VAT Add to Cart
  49. 088. Temperature sensor for Nibe Heat Pump

    Temperature sensor
    25.27£ incl. VAT 20.22£ excl. VAT Add to Cart
  50. 089. Temperature sensor for Nibe Heat Pump

    Temperature sensor
    25.27£ incl. VAT 20.22£ excl. VAT Add to Cart
  51. 091. Coupling 28x28, angle 90°

    Coupling 28x28, angle 90º
    49.50£ incl. VAT 39.60£ excl. VAT Add to Cart
  52. 092. Straight Coupling

    Straight coupling
    21.95£ incl. VAT 17.56£ excl. VAT Add to Cart
  53. 094. Temperature sensor for Nibe Heat Pump

    Temperature sensor
    25.27£ incl. VAT 20.22£ excl. VAT Add to Cart
  54. 098. Strain relief

    Strain relief
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  55. 099. Cable gland, incoming electricity

    Cable gland, incoming electricity
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  56. 101. Docking outgoing, Ø22

    Docking, outgoing
    24.99£ incl. VAT 19.99£ excl. VAT Add to Cart
  57. 102. Insulation pipe, Ø28

    Insulation pipe, Ø28
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  58. 105. Refrigerator compartment 4kW

    Refrigerator compartment 4kW
    3,414.11£ incl. VAT 2,731.29£ excl. VAT Add to Cart
  59. 108. Rubber Clamp

    Rubber clamp
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  60. 110. Panel Sign F-1115/1215

    Panel sign F-1115/1215
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  61. 113. Ribbon cable

    Ribbon cable
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  62. 120. Front upper F-1210/15/20

    Front upper F-1210/15/20
    128.73£ incl. VAT 102.98£ excl. VAT Add to Cart
  63. 121. Front Lower F-11-12 / 10/15/20

    Front, lower
    131.10£ incl. VAT 104.88£ excl. VAT Add to Cart
  64. 127. Back plate, upper for Nibe Fighter 1215

    Back plate, upper F-1210/15/20
    85.31£ incl. VAT 68.25£ excl. VAT Add to Cart
  65. 130. Plastic cover, front

    Plastic cover, front
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  66. 131. Snap lock, 1.5mm. 8 pcs/package

    Snap lock, 1.5mm. 8 pcs/package
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  67. 133. U-clip

    U-clip
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  68. 134. Mounting frame F-1120/1220/1320

    Mounting frame
    19.10£ incl. VAT 15.28£ excl. VAT Add to Cart
  69. 135. Reserve WH-cu Fighter 12xx

    Reserve WH-cu Fighter 12xx
    2,216.92£ incl. VAT 1,773.54£ excl. VAT Add to Cart
  70. Circulation pump Grundfos UPMGEO 25-85180 mm (Replaces UPS 25-80)

    Circulation pump Grundfos UPML 25-95 180mm
    1,366.67£ incl. VAT 1,093.34£ excl. VAT Add to Cart
  71. HOUSING UPPER PART 434652

    HOUSING UPPER PART 434652
    17.58£ incl. VAT 14.06£ excl. VAT Add to Cart
  72. Room sensor Nibe RG20

    Room sensor Nibe RG20 that works with Nibe Fighter 1110, 1115, 1210, 1215 and 1310.


    232.94£ incl. VAT 186.35£ excl. VAT Add to Cart
